| Vật liệu: | Dây mạ kẽm, Q195, Dây thép cacbon thấp | Kiểu: | MIL1 - MIL19 |
|---|---|---|---|
| Đường kính của lưới: | 4.0mm, 5.0mm | Lỗ lưới: | 3", 8*8cm, 10*10cm |
| Màu sắc: | Màu be hoặc xanh quân sự | Trọng lượng địa kỹ thuật: | 250 g/㎡, 220g, 300g, 350g |
| Cách sử dụng: | Pháo đài phòng thủ bằng tường cát | Đặc trưng: | Mạnh mẽ, chống lại |
| yeas của kinh nghiệm: | 15 năm | Vật mẫu: | Miễn phí |
| Làm nổi bật: | zinc coated welded defensive barrier,geotextile lined flood protection fence,heavy duty hesco bastion barrier |
||

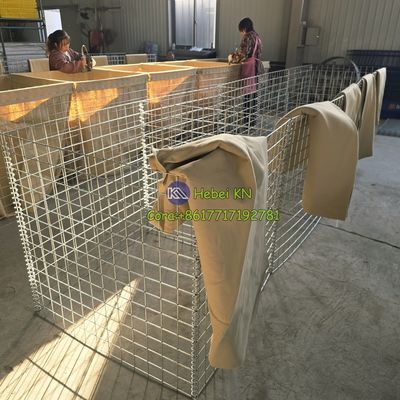

2.21x1.52x30.5m Heavy Zinc Coated Welded HESCO Defensive Barrier Bastion Lined with Geotextile Cloth for Flood Protection Wall
MIL10 Defensive Barrier = 2.21m (height) × 1.52m (width) × 30.5m (length) is a purpose-engineered solution tailored for flood protection wall and fence applications, where water resistance, structural robustness, and rapid emergency deployment are critical.
Crafted with heavy-gauge steel wires treated via thick zinc coating (meeting BS EN 10244-2:2009 standards for corrosion resistance), its full-welded grid structure delivers exceptional load-bearing capacity—effectively withstanding hydrodynamic forces from fast-flowing floodwaters (up to 3.2m/s flow velocity) and preventing structural deformation even after prolonged submersion.
Lined with a high-density, water-impermeable geotextile cloth (250gsm polypropylene, UV-stabilized), this barrier not only locks in on-site fill materials (sand, gravel, or soil) to form a solid, leak-proof flood defense core but also blocks fine sediment infiltration, avoiding barrier clogging and maintaining long-term flood mitigation efficiency.
| Item | Specification Parameters | Implementation Standard |
| Model | ML10 (Mil 10) | Military-Grade Defensive Barrier Standard |
| Overall Dimensions | 2.21m×1.53m×30.5m (H × W × L) | BS EN 10218-2012 |
| Number of Cells | 20 groups (5 +5+5+5 cells) | Modular Design Specification |
| Steel Wire Diameter | Mesh surface: 4 or 5 mm; Spiral fixing wire: 4mm | High-Carbon Steel Wire Mechanical Standard |
| Anti-Corrosion Treatment | Hot-dip galvanizing + zinc-aluminum alloy coating | BS EN 10244-2:2009 |
| Geotextile Specifications | 250g or 300g, 350g geotextile cloth, beige/green | ISO 9001 Certification |
| Explosion-Proof Grade | Resists 14.5mm armor-piercing projectiles and TNT-equivalent explosions | Military Standard Explosion-Proof Test Standard |
| Installation Efficiency | Single unit ≤ 30 minutes (operated by 2-3 people) | On-Site Deployment Operation Specification |
Unrivaled protection |
MIL can be used for: |
|
|
Perimeter Security and Defence Walls |
| Equipment Revetments | |
| Personnel and Material Bunkers | |
| Observation Points | |
| Defensive Firing Positions | |
| Guard Posts | |
| Explosives and Contraband Search Areas | |
| Highway Checkpoints | |
| Border Crossing Checkpoints | |
| Protecting Existing Structures | |
| Flood contro retaining wall | |
| Protection engineering of seaside area |
Features of Defensive Barriers
The Common Specification for Defensive Barriers:
1. Wire Diameter: 4-5mm
2. Mesh Size: 3" (75x75mm,50x50mm) 80*80mm
3. Panel Size: 13 type size for any security protection,suddenly burst attacks
4. Geotextile: In heavy duty non-woven polypropylene,weight from 220g - 350g
5. Color: Grey and Military Green,Sand color etc.
6. Finish: Hot dipped galvanized, Galfan wire.
7. Packing: Packed in pallet
8. Accessories: Joint Pin and Sprial Wire.
Specification List:
Product Detail Show:
|
|
|
|
Connection types of defensive barrier:
The defensive barrier is usually connected with spiral wire, which allows the gabion mesh box to be folded up for easy loading and transportation, and it can be quickly shaped, filled with soil or stones and put into application when in use. The springs are all made of high strength steel wire, which can greatly improve the sturdiness of the defensive barrier.
|
|
|
The Application for Welded Defensive Barriers:
1. Flood Control
The Military defensive Barrier is more and more popular and Homemade. Most Countries Near the coastline choose the Defensive Barrier as Flood Protection.
2. Protection Wall
More and more people used Welded Defensive barrier as a wall for homemade protection, light weight and easy operation to build a wall fast.
The Advantages of Welded Defensive Barrier:
1. Easy Installation
After getting it, Just put it in the right place and open it, Full filled the sand and earth is okay. Even 2-3 persons can finish it.
2. Anti-Corrosion
The Raw material is Hot Dipped Galvanized Wire, it can use 10 years even more longer, fit for outside protection.
Defensive Barrier Quality Checking:
