Thông tin chi tiết sản phẩm:
Thanh toán:
|
| Lỗ lưới: | 3 x 3 x 75mm x 75mm | Xử lý bề mặt: | mạ kẽm nhúng nóng |
|---|---|---|---|
| Đường kính dây: | 5mm | Vải địa kỹ thuật: | màu cát 250gsm |
| Cổ phần: | 300 chiếc | Bưu kiện: | Nhựa và sau đó Pallet |
| Ứng dụng: | Phòng chống lũ sông Hesco | Dây lò xo: | 5mm |
| Làm nổi bật: | UV resistant sand filled barriers,heavy rain storm protection barriers,flood control hesco bastion barriers |
||

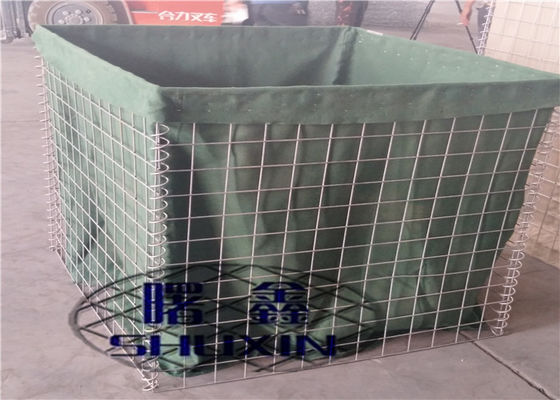

Customized Galvanized Hesco Military Barrier Bastion Sand Filled Barriers For Security Protection
✅ Raw material traceability: The steel wire is sourced from listed steel mills. Samples from each batch are sent for testing to ensure the tensile strength meets the standards.
✅ Full production inspection: Before leaving the factory, the welded mesh panels undergo three tests: shear strength, tensile strength, and yield strength.
✅ Third-party certification: Compliant with ISO 9001 quality management system. Optional CE/FCC certification documents are available upon request (provided as needed).
✅ After-sales commitment: For bulk orders, a 10-year warranty is provided - weld seam cracking, coating detachment, and aging of geotextile are all covered within the warranty period.
✅ Local logistics in Africa: Full container shipping can be arranged to Lagos Port (Apapa/Tincan), including customs clearance and inland transportation in Nigeria.
operational principle
Recently, more and more Nigerian construction and mining companies have been inquiring about Hesco barriers. Here is the unified answer to the questions that everyone is most concerned about: Why is it 80% cheaper than the concrete solution? Because Hesco barriers use locally sourced sand and gravel on-site - these materials are everywhere at your construction site or along the riverbed, and they are free. While concrete requires purchasing cement, stones, river sand, along with formwork and labor, the cost per meter is several times higher. Additionally, Hesco barriers are modular and prefabricated, folded into one pallet that is 150 feet long, and delivered to your site much faster than concrete.
Quick Details
| Unit Type |
Height (M) |
Width (M) |
Length (M) |
Internal Cells |
| KN-mil1 | 1.37 | 1.06 | 10 | 9 |
| KN-mil2 | 0.61 | 0.61 | 1.22 | 2 |
| KN-mil3 | 1.0 | 1.0 | 10 | 10 |
| KN-mil4 | 1.0 | 1.52 | 10 | 6 |
| KN-mil5 | 0.61 | 0.61 | 3.05 | 5 |
| KN-mil6 | 1.68 | 0.61 | 3.05 | 5 |
| KN-mil7 | 2.21 | 2.13 | 27.74 | 4 |
| KN-mil8 | 1.37 | 1.22 | 10 | 9 |
| KN-mil9 | 1.0 | 0.76 | 9.14 | 9 |
| KN-mil10 | 2.21 | 1.52 | 30.5 | 5 |
Detail Specification
1. Wire diameter: 4-5mm
2. Mesh size: 3" (75x75mm,50x50mm)
3. Panel size: 12 type size for any security protection,suddenly burst attacks
4. Geotextile: in heavy duty non-woven polypropylene;
5. Color: Grey and Military Green,Sand color etc.
6. Finish: hot dipped galvanized, Galfan wire.
7. Packing: wrapped with shrink film or packed in pallet
Application
1. Environmental Barriers,Flood Barriers, a reliable, easy-to-deploy and robust solution for emergency flood protection or long-term wetland restoration
2. Defensive Barriers: Protecting both military and civilian personnel in dangerous environments demands defensive solutions that are secure, reliable and readily available.
3. Protective Barriers: Protect your workforce,Create a secure refuge for your employees by
providing protection for up to eight people with Accommodation Bunker.
4. Rockface: transforms the highly effective wall into an aesthetically pleasing structure ideal for customer-facing perimeter security where a more benign appearance is required.
Features
1. having a Galfan coated steel mesh framework
2. integrated cells to provide internal structural integrity.
3. exceptional strength and structural integrity
4. High tensile and anti-impact capability
5. making transportation efficient and rapid
